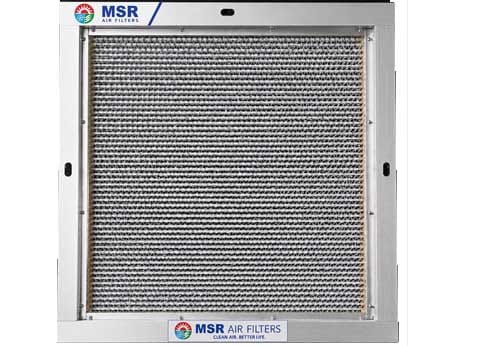

MSR Air HEPA Filters

MSR Air HEPA Filters are manufactured from continuous length superior Quality micro glass fiber paper media. Due to the different thermal expansion coefficients of the individual filter components the ceramic potting may form cracks during the tempering process. At operating temperature (80°C to 350°C) these filters have an overall efficiency of 99.97% at 0.3 micron.

Description:
  • Application: Protection for clean processes at high temperature
  • Type: HEPA-Filter
  • Case: Stainless steel
  • Media: Glass fibre
  • Separators: Corrugated Aluminium
  • Sealant: Ceramic
  • Gasket: Cord seal
  • Efficiency acc. EN 1822:2009: H13
  • MPPS efficiency acc. EN 1822:2009: ≥ 99.97% at 0.3 µm, ≥ 99.995% at MPPS, measured at 20°C with DEHS
  • Final pressure drop: 500 Pa (Recommended)
  • Temperature: 350°C
  • Humidity: 100% RH
