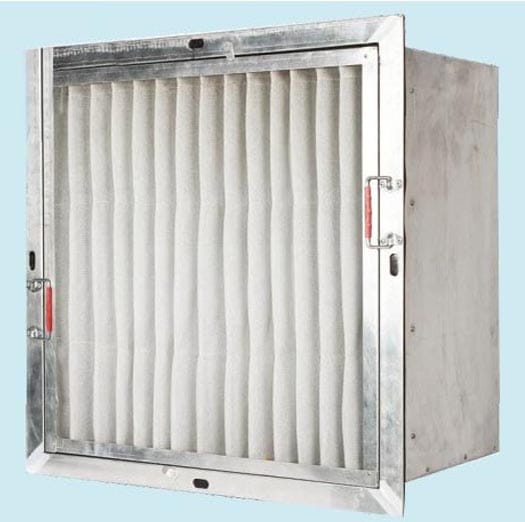

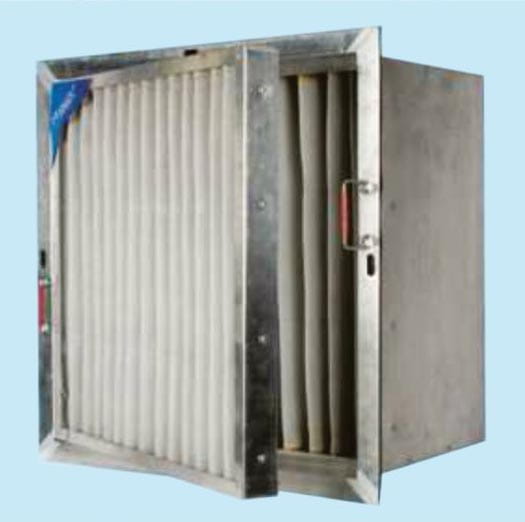

MSR Combination Filter

MSR Air Filters provides high-efficiency air filtration performance in a compact, supported media design.

The washable pleated panel filter is made from non-woven needle punched synthetic media and this is embedded within a galvanized steel / Aluminium/ Stainless Steel Channel frame with EPOXY sealing ensuring non air bypass. It gives excellent performance in conditions of high relative humidity.

Description:
  • Application: Primary filter for air conditioning systems
  • Type: Pleated synthetic fiber media
  • Case: Galvanized steel / Aluminum extrusion / Stainless Steel
  • Media: Mixture of cotton, synthetic fiber and HDPE
  • EN 779:2002 Efficiency: G2 / G4+F5 / F6
  • Eurovent Efficiency: EU2 / EU4+ EU5 / EU6
  • Average Arrestance: 65 to 70%
  • Final Pressure Drop: 150 / 250 Pa
  • Rated Face Velocity: 2.5 m/s
  • Maximum Operating Temperature: 70°C maximum in continuous service
  • Max. Relative Humidity: 100% RH
