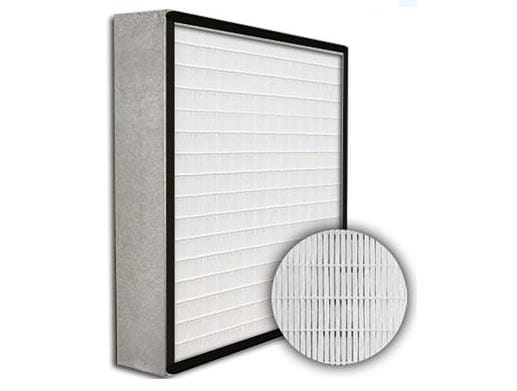

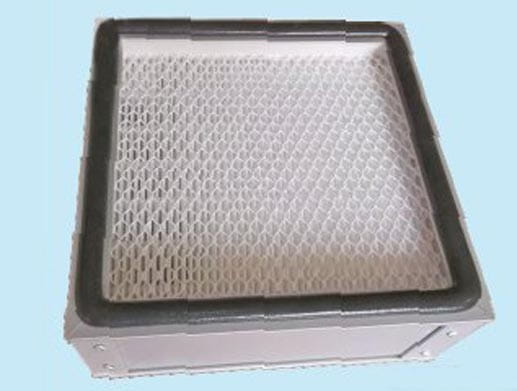

MSR Minipleated HEPA Filter (Separator Less)

We are highly satisfied with the quality of the mini pleat HEPA filters. The filters are manufactured with excellent workmanship, uniform pleat spacing, and robust construction, ensuring reliable performance and long service life. The filtration efficiency and low pressure drop consistently meet our cleanroom and HVAC requirements. Each filter is well-finished, leak-tested, and delivered with proper quality documentation. Timely delivery, responsive technical support, and consistent product quality make this manufacturer a trusted partner. We confidently recommend their mini pleat HEPA filters for pharmaceutical, healthcare, electronics, food processing, and other critical cleanroom applications.

MSR Air Filters MINIPLEAT filters are manufactured from continuous length superior quality micro glass fiber paper media available in various efficiency grades. The filter media is moisture resistant and fire retardant. Anti-microbial treated papers are also available for special applications.

The uniform and closed pleat filter pack grants a high crossing surface to hold the very fine dusts.

The Mini-Pleat filters construction shall have extruded anodized aluminum profiles.

The Mini-Pleat Panel filters are provided an expanded metal mesh face guards on downstream side and upstream side. The filter consists of micro-glass fiber media in efficiencies from 95% to 99.999995% @ MPPS (filter classes E10-U17 according to EN1822).

MSR Air Filters provides high-efficiency air filtration performance in a compact, supported media design.

The washable pleated panel filter is made from non-woven needle punched synthetic media and this is embedded within a galvanized steel / Aluminium/ Stainless Steel Channel frame with EPOXY sealing ensuring non air bypass. It gives excellent performance in conditions of high relative humidity.

Description:
  • Application: Final or return filtration for clean rooms, Laminar air flow for clean benches
  • Type: High efficiency filter panel
  • Case: Extruded and anodized aluminum
  • Media: Micro-FIBRE GLASS
  • Separator: Hot-melt beads
  • Sealant: Polyurethane
  • Gasket: Neoprene Rubber
  • Faceguard: Expanded metal on both side, powder coated
  • EN 1822 efficiency: H13 / H14
  • MPPS efficiency: H13 ≥ 99.95%, H14 ≥ 99.995%
  • Final Pressure Drop: 400 Pa Recommended, 600 (Maximum)
  • Temperature: 70°C maximum in continuous service
  • Humidity: 100% RH
  • Test: 100% individually tested according to EN1822
Application:
  • Low initial pressure drop
  • Resilient
  • Wide range of Standard Size
  • Double faceguard
  • Individually tested according to EN 1822
  • Guaranteed performance
