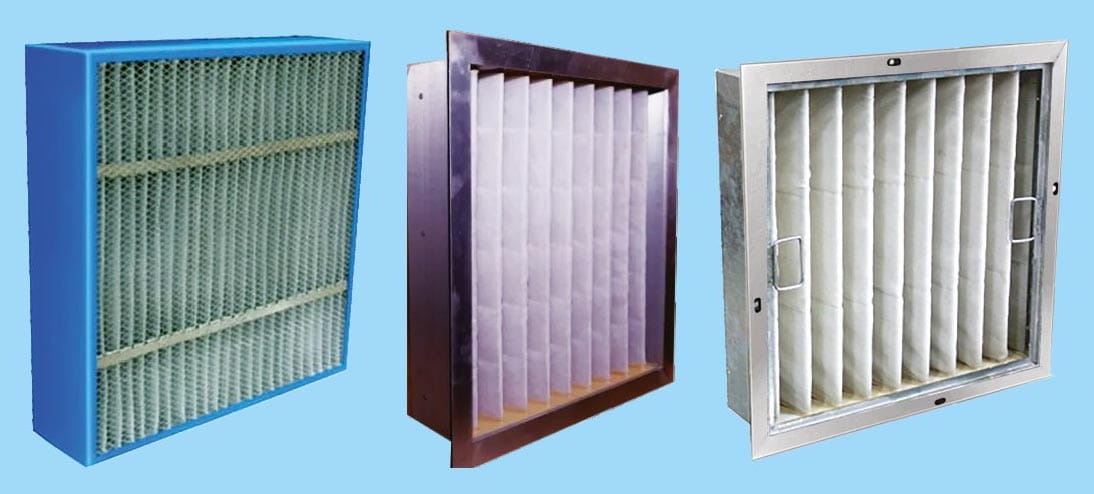

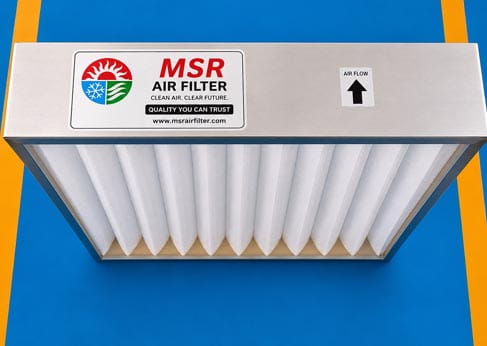

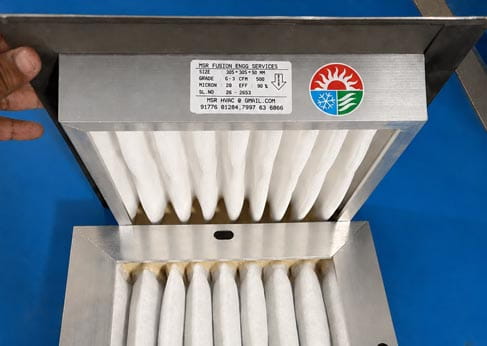

MSR Fine Filter

MSR Air Filters provides high-efficiency air filtration performance in a compact, supported media design.

The Rigid Cell Filters are designed for use as secondary filters in areas such as Pharmaceuticals, Laboratories, Hospitals or as Pre-Filter to Fine Filters.

The full surface area of the filter media is always available, even after prolonged use and heavy dust loading.

The media is housed in a rigid frame with an optional header, providing a sturdy construction that is easy to install in front, rear or side access systems.

Description:
  • Application: Secondary filter for air conditioning systems
  • Type: Pleated synthetic fiber media
  • Case: Galvanized steel / Aluminum extrusion / Stainless Steel
  • Media: Mixture of cotton and synthetic fiber
  • EN 779:2002 Efficiency: F5 / F9
  • Eurovent Efficiency: EU5 / EU9
  • Average Arrestance: 90–95%
  • Final Pressure Drop: 150 / 250 Pa
  • Rated Face Velocity: 2.5 m/s
  • Maximum Operating Temperature: 80°C maximum in continuous service
  • Max. Relative Humidity: 100% RH

Application:
  • Robust Construction
  • High dust holding capacity
  • Excellent arrestance
  • Suitable for Commercial & Industrial Application
  • Self-Supported Pleated Panel Filter
