MSR Industrial Application

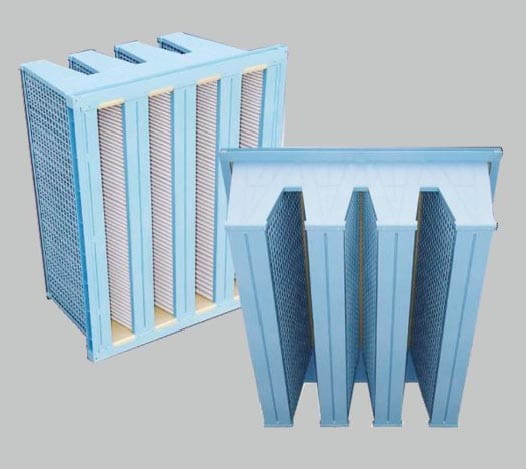

Mode of construction: V-Bank type Minipleat Filter.
Filter Frame Material: Aluminum anodized, GI (Powder coated) & SS 304/316, Polystyrene plastic.
Adhesive: Polyurethane/Epoxy based adhesive for leak Proof Joint between Filter media and casing.
HEPA (Mini Pleat) Filter Grading: Filter media available in H10 to H14 Grade with the respective micron rating of 0.3µ.

ULPA Filter Grading: Filter media available in U15 & U16 Grade with the respective micron rating of 0.3µ.
Temperature & Humidity: Recommended for operating temperature of 80°C and Humidity up to 100% RH.
Performance: HEPA (Minipleat) Filters acquires the utmost Overall Efficiency of 99.995%. ULPA Filters acquire the utmost Overall efficiency of 99.9995%.
Product Range: Our V-Bank filters are available with air handling capacity in the range of 170 cubic meter/hr (100 CFM) to 3400 Cubic meter/hr (2000 CFM). Note: Higher flow rates also can be given as on request.
Construction: MSR MAKE V-Bank filters are designed to tolerate high velocities and turbulence, making them suitable for many types of air handling systems. The filter media used are high-arrestance Micro fine fiber-glass paper is pleated fully automatically to produce filter packs of different sizes. The individual folds are spaced by means of fused plastic threads are simultaneously lend the filter packs the required stability. Each filter element is tested using state-of-the-art testing equipment for arrestance efficiency and leak proofing in accordance EN 1822 standard and delivered together with the corresponding test certificate.
