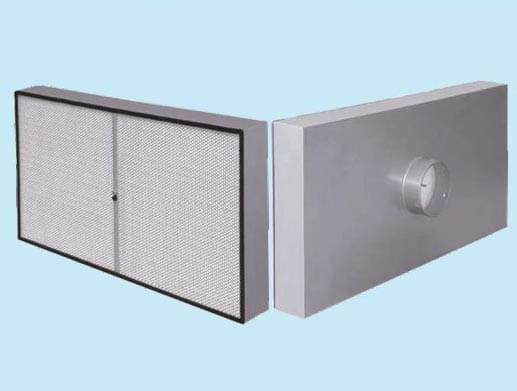

MSR Hooded Type HEPA Filters

MSR Air Filters Disposable Ceiling Module (Hooded Filter) is designed for optimum filter performance with an individually ducted system for use in laminar and non-laminar flow clean room Class I-Lac to 10 area.

The Disposable ceiling module is hermetically sealed to prevent voids and leaks.

To meet straight air quality requirement of clean rooms. It is typically installed in a T-bar grid system suspended from the ceiling or installed in modular ceiling grid. Hold-down clamping is not required.

The standard module comes with a 250mm (10") diameter inlet, a fixed distribution plate, an integral round duct connection and a white epoxy coated face guard on the downstream side to protect the HEPA mini pleat pack. Also having provision for DOP test port.


Description:
  • Application: Laminar air flow benched & clean rooms
  • Type: Minipleat HEPA filter
  • Case: Extruded and anodized aluminum
  • Media: Micro-FIBRE GLASS
  • Separator: Hot-melt beads
  • Sealant: Polyurethane
  • Gasket: Neoprene Rubber
  • Faceguard: White epoxy coated Expanded metal mesh grill
  • EN 1822 efficiency: H13 / H14
  • MPPS efficiency:H13 ≥ 99.95%, H14 ≥ 99.995%
  • Final Pressure Drop: 400 Pa Recommended, 600 (Maximum)
  • Temperature: 70°C maximum in continuous service
  • Humidity: 100% RH
  • Test: 100% individually tested according to EN1822
Application:
  • Hermetically sealed construction
  • High efficiency filter
  • Low Profile with Lightweight housing
  • Individually tested according to EN 1822
