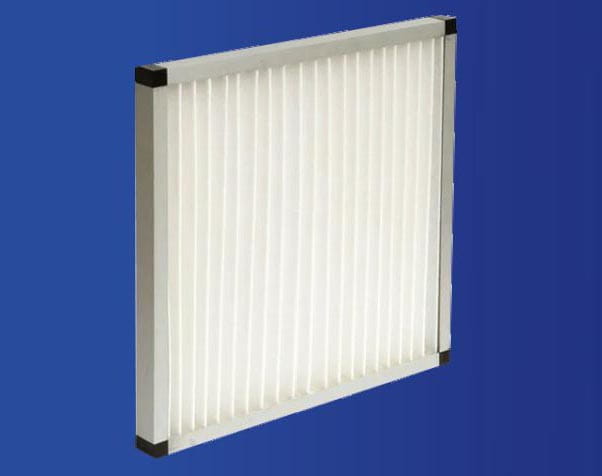

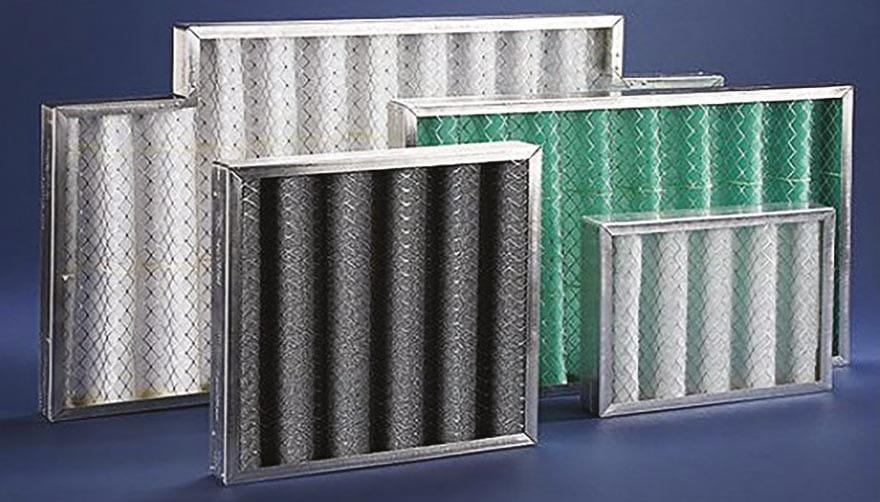

MSR Panel Filter

MSR Air Filters provides high-efficiency ASHRAE air filtration performance in a compact, supported media design.

The washable pleated panel filter is made from non-woven needle punched synthetic media and this is fixed within a galvanized steel / Aluminum extrusion / Stainless Steel Channel frame with EPOXY sealing ensuring non air bypass.

Excellent performance in conditions of high relative humidity.


Description:
  • Application: Primary filter for air conditioning systems
  • Type: Pleated synthetic fiber media
  • Case: Galvanized steel / Aluminum / Stainless Steel Channel
  • Media: Mixture of cotton and synthetic fiber
  • EN 779:2002 Efficiency: G2 / G4
  • Eurovent Efficiency: EU2 / EU4
  • Average Arrestance: 65–70%
  • Final Pressure Drop: 150 / 250 Pa
  • Rated Face Velocity: 2.5 m/s
  • Maximum Operating Temperature: 70°C maximun in continuous service

Application:
  • High dust holding capacity
  • Excellent arrestance
  • Suitable for commercial and industrial applications
  • Self-supported pleated panel filter
  • Low pressure drop
