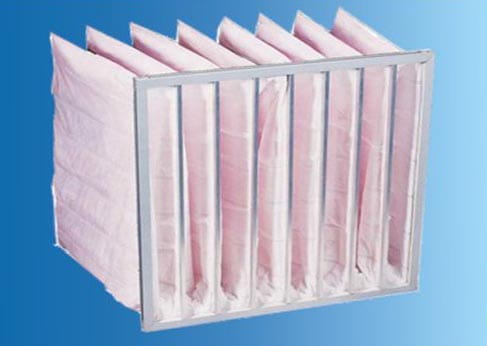

MSR Pocket Filter (Polyester & Synthetic Media)

MSR Air Filters are manufacturing POCKET FILTER (POLYSTER & SYNTHETIC MEDIA) as medium to high efficiency extended surface self-supporting pocket (bag) filters made of super fine synthetic (polyester) filter media. Three progressive density multi-layered fiber arrangement offers excellent filtration performance combined with very high dust holding capacity.

MSR Poly-G model with a unique aerodynamic design is also available for air intake application like gas turbines, diesel generators and spray painting plants.

Advantage:
  • Filter material of newly-developed plastic fibre media
  • Low initial pressure loss, flat development
  • Newly-developed seam technique for better air distribution
  • Conical pockets and self-supporting bags
  • Molded, rigid and aerodynamically designed plastic front facilitate airflow through the media
Description:
  • Application: Filtration for fine particle in AHU & Ventilation System
  • Type: Pocket Filter
  • Case: Galvanized steel / ABS
  • Media: Progressive structure Polyester media
  • EN 779:2002 Efficiency: F5 / F9
  • Eurovent Efficiency: EU5 / EU9
  • Average Arrestance: 55 to 90%
  • Final Pressure Drop: 250 Pa
  • Temperature: 80°C maximum in continuous service
  • Max. Relative Humidity: 100% RH
Application:
  • High air flow rate
  • Low initial pressure drop
  • Sturdy construction
  • Extended media surface
  • Very High dust holding capacity
  • Effective separation of Abrasive particle
